레노버 노트북 분해 (Ideapad Gamin3 15ACH6)







---

Lenovo Laptop Decomposition (Ideapad Gamin3 15ACH6)



Ideapad Gamin3 15ACH6 뒤판



​



​



​



​



Unscrew the back panel and open the cover



Ideapad Gamin3 15ACH6 Remove Back Panel Screws and Open



​



​



​



​



​

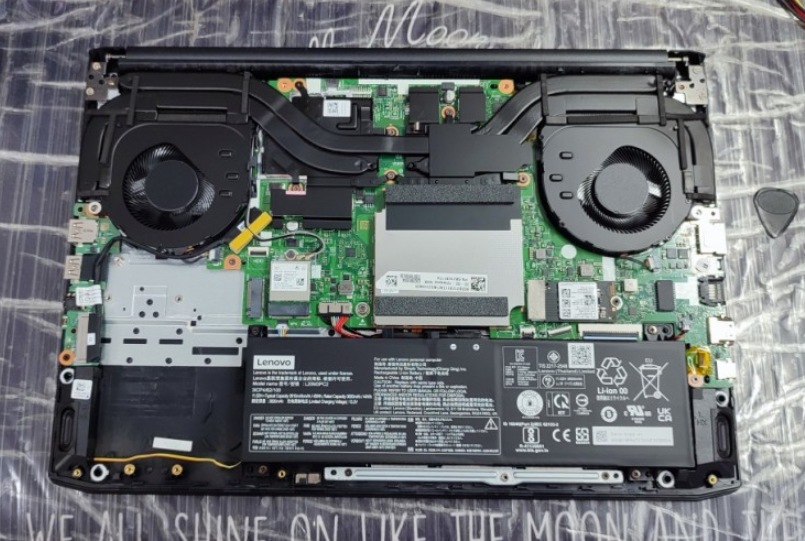

When disassembled, you can see the motherboard and accessories as shown below.



Laptop Degradation



​



​



​



We are planning to install the HDD (hard disk) that you used before and use it as a D-drive backup disk.



​



​



​



​



When I bought the laptop, this sponge was shipped together. Looks like a shock proof sponge.



These are sponges that are meant to be attached to hard disks.



​



​



​



​



​



​



​



I found the manual on the homepage, checked where you put the sponge, and attached it according to the location. It's not a manual to attach a sponge, but a manual to explain how to disassemble it, but it happened to have a sponge.



The sponge was attached to the notebook hard disk.



​



​



​



​



​



​



Since you are not installing an additional M.2 SSD, it is an option whether to sponge the additional M.2 SSD space or not, but you may upgrade the HDD to a sub M.2 SSD later, so I attached a sponge to insulate it for now. Attaching as intended by the producer sometimes solves unexpected errors. In the past, there was an insulation tape attached to the case inside the back panel of the laptop, but I opened it because I thought it was wrong, and it was attached to insulate the substrate from the back cover (aluminium). Skilled people should also refer to the manufacturer's manual (thoughts). Of course, the production may be crazy and there may be things you didn't think of, so I hope you improve it according to the situation.



M.2 SSD insulated, hard disk shock proof sponge attached
